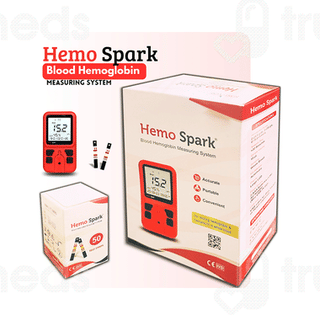

Hemo Spark Blood Hemoglobin Measuring System 1 With 50 Test Strips

Hemo Spark Blood Hemoglobin Measuring System 1 With 50 Test Strips is used for measuring haemoglobin levels in the blood accurately. Providing precise results in less than 30 seconds, it is perfect for at-home monitoring, emergencies and areas without easy access to clinical labs. The device is user-friendly, portable and compact, making it convenient to use in any setting. It is capable of testing whole blood from capillary, venous or arterial sources, ensuring versatility for various health monitoring needs. With the ability to store up to 1000 readings, including date and time and options for USB data transfer to a PC or printer, the Hemo Spark offers a comprehensive solution for tracking haemoglobin levels.

• Methodology: Reflectance Photometer

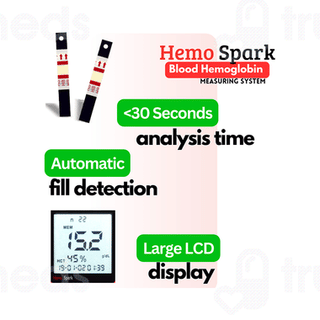

• Test Time: Less than 30 seconds for results

• Automatic Shut Off: 5 minutes after last use to conserve battery

• Meter Size: 100 mm × 54.5 mm × 25.5 mm

• Display Size: 38.5 mm × 37.5 mm LCD

• Weight: 72 g (without batteries)

• Meter Storage Conditions: 0 – 50 ºC (32 – 122 ºF)

• Operating Conditions: 2 – 40 ºC (35.6 – 104 ºF)

• Working Humidity: 5 – 95% RH

• Analyzer Port: USB cable for data transfer and power

• Capabilities: USB data transfer to PC and printer

• Meter Warranty: 3 years

• Strip (Working Environment): 2 – 40 ºC and 5 – 95% RH

• Strip (Storage Environment): 2 – 40 ºC and 5 – 95% RH

• Strip Shelf Life: 18 months

• Auto Calibration: Auto/self-calibration

• Sensitivity and Specificity: More than 80%

• Bias (Limits of Agreement): 0.5 g/dL (±1 gm/dL)

• Accuracy: 98%

• Reproducibility: CV < 3%

• Measurement Range: 0 – 25.6 g/dL, 0 – 256 g/L, 0 – 15.9 mmol/L

• Sample: Whole blood (Capillary, Venous, Arterial)

• Sample Volume: 10 µL

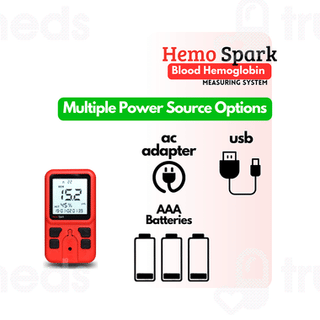

• Power Source: 3 AAA rechargeable batteries (1.5V) or AC adapter (Mini USB, 5V DC, 1A)

• Battery Life: 100 hours or 1000 tests

• Units of Measure: g/dL, g/L, mmol/L

• Memory: Stores up to 1000 records with date and time

• Haemoglobin Measurement: The Hemo Spark device provides an accurate, quick measurement of total haemoglobin levels in the blood, helping individuals monitor their haemoglobin status regularly.

• At-Home Monitoring: Its user-friendly design makes it an ideal tool for home use, enabling individuals to check their haemoglobin levels without the need for laboratory visits.

• Emergency Situations: Due to its fast test time (less than 30 seconds) and ease of use, it is well-suited for emergencies, offering reliable results when immediate action may be required.

• Portable and Convenient: The compact, lightweight design makes the device easy to carry and use in various settings, including travel or outdoor activities, where clinical testing might not be accessible.

• Suitable for Various Blood Samples: It can be used with whole blood samples from capillary, venous or arterial sources, making it versatile and adaptable to different testing needs.

• Data Storage and Transfer: With the ability to store up to 1000 test results, including date and time, the Hemo Spark offers easy data tracking. It also supports USB data transfer to a PC or printer, allowing for further analysis and record-keeping.

• Insert a Hemospark strip into the Hemo Spark device.
• Use the lancet provided to obtain a small blood sample (10 µL).
• Apply the blood sample to the strip.
• Wait for the device to display the haemoglobin level within 30 seconds.
• Remove the strip after use and store it properly.
• The device will automatically shut off after 5 minutes of inactivity to conserve battery.

• Read the label carefully before use.
• Store in a cool, dry place, away from direct sunlight.
• Keep out of reach of children.
• For external use only.
• Ensure strips are used with the Hemo Spark device only for accurate results.
• Replace the code chip with each new strip purchase to maintain accurate readings.
